ATR: The Feature That Lets a Total Station Find Its Own Target
Point it roughly at the prism. The instrument does the rest, locking on, staying locked, and following it station to station.
Aiming a telescope precisely at a small prism, over and over, all day, is tiring and it's where fine-pointing errors creep in. Automatic Target Recognition, or ATR, exists to take that repetitive precision task away from the human eye and hand it to the instrument itself.
How the Lock-On Works

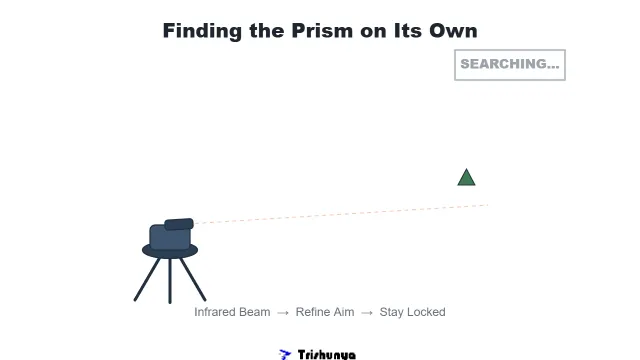

ATR uses an infrared light bundle sent coaxially through the telescope itself. You still need to point roughly at the target prism first, either by hand or under software control, but that's the last manual step. From there, the instrument refines the aim on its own, finding the exact centre of the prism far more precisely and consistently than a human eye could manage, reading after reading.
Once it locks, ATR stays locked. As the prism moves from station to station, the instrument continues following it automatically. If something blocks the line of sight, a wall, a passing vehicle, a stack of material, the lock breaks, but it re-establishes the moment the operator manually points at the prism again.
Test the Lock Yourself
Click the green target below. Watch how instantly the "lock" registers, that's the same core idea ATR performs automatically in the field, just simplified into a game.
Each click relocks and moves the target to a new position, just like ATR reacquiring a moving prism.
What ATR Actually Delivers
at 100 m distance
ATR works in darkness since it relies on infrared, not visible light, and needs no manual focusing or fine pointing once it's locked. It's also compatible with all types of prisms, not a single proprietary design, which matters when a crew is mixing equipment across a project.
Once sighted at the prism, the instrument will continue to follow the prism as it is moved from station to station.
Why This Changes Fieldwork
Removing manual fine-pointing from every single reading adds up fast across a full day of stakeout or control survey work. Fewer human touchpoints means fewer chances for parallax and pointing error, and it's a core reason ATR-equipped instruments are now standard on demanding construction projects where hundreds of points get set in a single shift.
FAQs
Yes, an initial rough aim at the prism is still needed, either by hand or under software control. ATR then refines that aim precisely on its own.
If an obstacle breaks the line of sight, the lock is lost and must be re-established by manually pointing at the prism again.
ATR works with all types of prisms, though a 360° prism makes maintaining lock-on easier during extended moving work.
Yes, ATR maintains lock on prisms moving at speeds up to roughly 15 km/h when measured at a distance of 100 m.
They're related but distinct. ATR is the recognition and lock-on technology, while a robotic total station combines ATR-style tracking with remote operation from the prism point.
