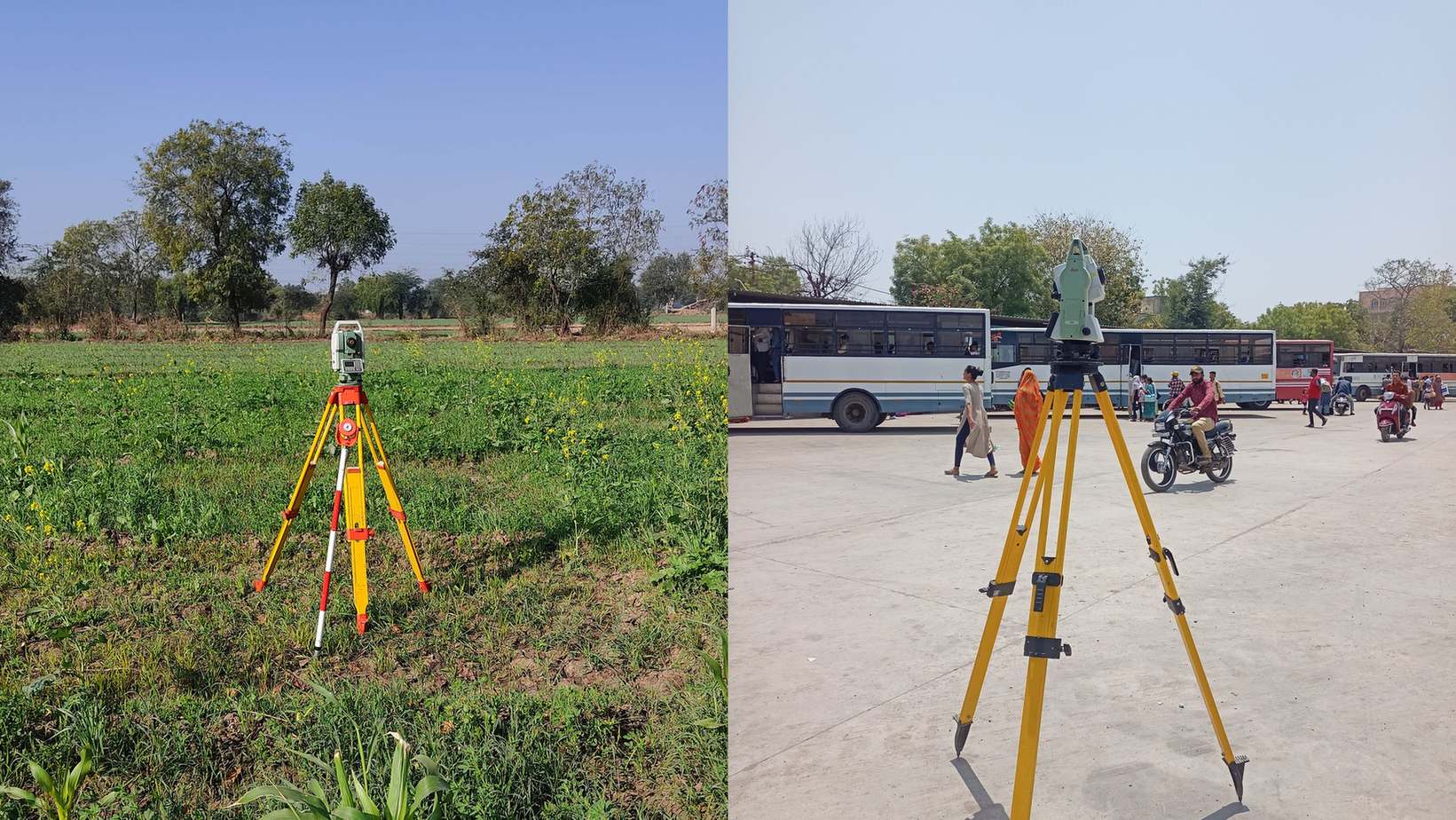

Cadastral Survey vs Topographic Survey: What's the Difference?
An architect once asked us for "the survey" of a site, assuming one document would cover both the legal boundary and the ground elevations his design needed. It does not work that way. A cadastral survey and a topographic survey answer two completely different questions, and confusing them holds up projects more often than it should.
A cadastral survey establishes where the legal property line sits. A topographic survey maps what is physically on that land: elevation, slope, drainage, vegetation, structures. One settles ownership questions. The other feeds engineering and design decisions. Most serious projects eventually need both, just not for the same reason.
What a Cadastral Survey Establishes
A cadastral survey, sometimes called a boundary or land survey, determines and documents the legal limits of a property. It is the record used for ownership transactions, subdivision, and resolving boundary disputes. Only a licensed surveyor's cadastral work carries legal weight when a court or registration office needs to confirm where one property ends and another begins.
What a Topographic Survey Captures
A topographic survey records the physical shape and features of the land: elevation contours, slope, existing structures, vegetation, drainage paths, and utility locations where visible. It carries no legal authority over ownership, but no architect or civil engineer can design a foundation, drainage plan, or road alignment without it.
Cadastral Survey
- Defines legal property boundaries
- Used for sale, subdivision, registration
- Legally binding when done by a licensed surveyor
- Deliverable: boundary plan with coordinates and area
Topographic Survey
- Maps elevation, slope, and physical features
- Used for design, drainage, and construction planning
- No legal standing on ownership
- Deliverable: contour map, DTM, CAD drawing, cross-sections
Deliverables Compared
| Aspect | Cadastral Survey | Topographic Survey |
|---|---|---|
| Primary output | Boundary plan with legal coordinates | Contour map, DTM, CAD drawing |
| Legal use | Property transactions, disputes | Design and engineering reference only |
| Field method | DGPS or total station on boundary points | Drone, DGPS, or total station across the site |
| Typical trigger | Buying, selling, subdividing land | Planning construction, drainage, roads |
When You Need Both
For any construction project on a plot whose boundaries are not already legally confirmed, both surveys matter: the cadastral survey confirms you are building within your own land, and the topographic survey tells the design team what the ground actually looks like. Running both at once, using the same field visit where possible, is the efficient way large developments handle it.
Confirm ownership first
A cadastral survey establishes the legal boundary before any design work begins on the site.
Map the terrain inside that boundary
A topographic survey then captures elevation, drainage, and existing features within the confirmed line.
Hand both to the design team
Architects and civil engineers use the topographic data for design; the cadastral plan confirms the site fits within legal limits.
We have seen foundation plans redrawn late because a topographic survey was treated as boundary confirmation. The two documents answer different questions, and mixing them up costs real project time.
One survey tells you what you own. The other tells you what to build on it.
Our topographic survey work is typically paired with cadastral or DGPS-verified boundary data through our DGPS and RTK survey service, so developers get a single coordinated field visit instead of two separate engagements.
Need a boundary survey, a topographic survey, or both?
Tell us what you are building or buying, and we will scope the right combination.
Frequently Asked Questions
Cadastral survey defines legal property boundaries and carries legal authority, while topographic survey maps physical features like elevation and drainage for design purposes and has no legal standing on ownership.
Yes, especially if the boundary has not been independently verified recently. It confirms the plot's legal limits match what you are being sold.
No. A topographic survey shows physical features like existing fences but carries no legal weight on ownership. Boundary disputes require a cadastral survey.
Yes. Elevation, slope, and drainage data from a topographic survey directly inform foundation design, drainage planning, and site layout decisions.
Cadastral or boundary survey data tied to official survey numbers is what registration and revenue offices rely on, not topographic mapping.
Often yes, particularly when using DGPS or drone methods, since boundary points and terrain data can be captured in a coordinated visit rather than two separate trips.
Typical deliverables include a CAD drawing, digital terrain model, contour lines, cross-sections, and sometimes GIS shapefiles depending on project needs.
Yes. Only a licensed cadastral surveyor's work is recognized for legally redefining or confirming property boundaries and holds standing in disputes.
The cadastral survey confirms the project sits within its legal land parcel, while the topographic survey supplies the elevation and feature data engineers need to design on that land.
It can show visible utility markers and surface indicators, but a full underground utility mapping typically needs a dedicated GIS or ground-penetrating scan for complete accuracy.
