From Flat Map to 3D Terrain: How GIS Learns the Shape of the Ground
A flat paper map can tell you a hill exists. It cannot tell you how steep that hill is, which side drains into the valley, or whether a road built along it will survive the next monsoon. That extra dimension, height, is exactly what a Digital Elevation Model (DEM) adds, and once it's there, GIS stops being a flat drawing and starts behaving like a scaled-down version of the actual ground.
This single addition, elevation as data instead of a contour squiggle, is what lets planners rotate a hillside on screen, calculate slope automatically, and simulate where water will flow before a single shovel touches the ground.
Try It: Zoom Into a Terrain Model
Below is a generic hill-and-river terrain rendered as a simplified DEM-style surface. Use the zoom controls to see how a GIS reveals more detail as you get closer, exactly the challenge described in Section 6.7 of any GIS textbook: displaying a wide region on a small screen without losing meaning.
⛰️ Elevation Scanner
This is a generic terrain, not a real location. At wide zoom, only the river and major ridge lines matter. Zoom in, and finer contour detail appears, the same detail that would overwhelm the view at regional scale.
What a DEM Actually Contains
A DEM is raster data (see our earlier post on GIS Solutions for a refresher on raster vs vector) where every pixel stores one number: height above sea level. Nothing more. From that single value, GIS software calculates slope, aspect, drainage direction, and visibility, all without needing a single additional survey point.
🌊 Drainage Modelling

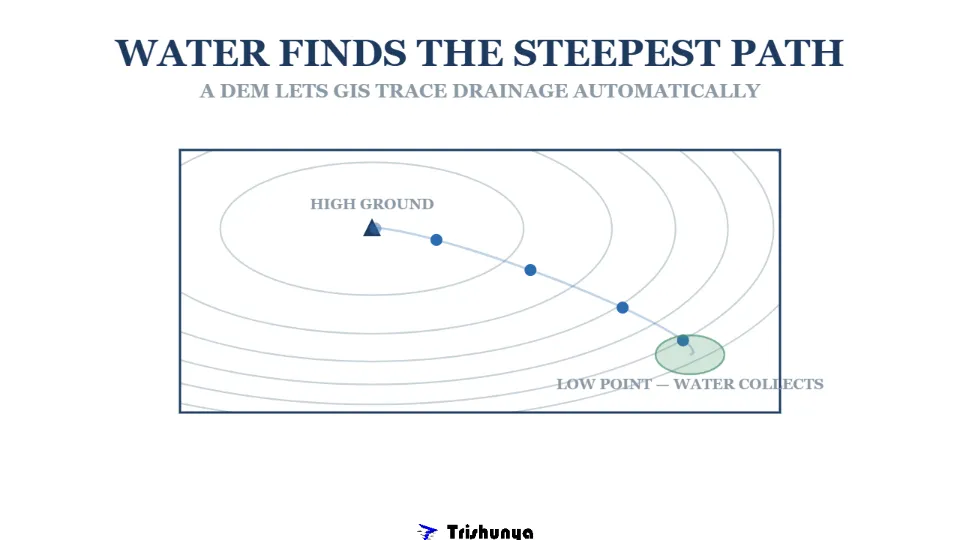

Water always flows to the steepest downhill path. A DEM lets software trace this automatically across an entire catchment, revealing flood-prone low points instantly.
📐 Slope & Cut-Fill
Construction teams use DEM data to calculate exactly how much material needs cutting or filling before laying a road or foundation, long before machinery arrives on site.
| Term | Meaning |
|---|---|
| DEM | Digital Elevation Model, bare-earth height data only |
| DTM | Digital Terrain Model, includes breaklines and terrain features |
| Contour | A line connecting points of equal elevation |
| 2.5D | Surface-only elevation, not a true solid 3D model |
Common Questions
Because a DEM stores one elevation value per location. You see the surface of the hill, not what's inside it, the same way a map shows a mountain's shape but not its internal geology.
Commonly through LiDAR Scan from drones or aircraft, or through photogrammetry from overlapping aerial images processed into an elevation surface.
Not always. A 1-metre DEM is excellent for site design but unnecessarily heavy for regional planning, where a coarser grid loads faster and shows the pattern just as clearly.
"A flat map shows you where things are. A DEM tells you why they ended up there."
Every time a construction project avoids a flood-prone dip in the land, or a road design accounts for a slope nobody noticed on the original survey, a DEM did the quiet work of catching it. The zoom demo above is a toy version, but the underlying idea, elevation stored as data instead of guessed from a contour line, is exactly what real project teams rely on before the first stake goes into the ground.
