You already know a total station gives you an angle reading the instant you aim it. What most people never see is how that number gets generated. There's no needle, no notch, no mechanical scale being read by a technician's eye. It's an optical scanning process happening inside the instrument, and it's worth understanding because it explains why total stations are so much more consistent than the transits they replaced.

Inside the instrument, a coded glass circle replaces the old graduated scale entirely.

Meet the Coded Circle

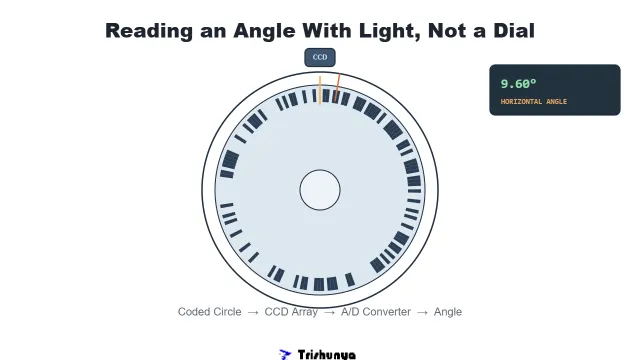

Inside the instrument sits a glass circle, but it isn't marked with the fine tick lines you'd picture on an old-fashioned scale. Instead, it carries one continuous coded graduation track that holds all the positional information at once. A linear CCD array reads that code, an analogue-to-digital converter interprets it, and the result is a position reading with maximum accuracy, no interpolation by eye required.

Try the dial Yourself

Drag the pointer below and watch how a raw pointing direction becomes a clean angle reading, the same basic idea an electronic circle performs internally, just simplified for your screen.

The Tilt Sensor: Correcting for a Wobble You Can't See

Even a perfectly leveled instrument drifts slightly out of true vertical during use, wind, ground settling, someone bumping the tripod. A tilt sensor inside the total station catches this using a liquid mirror that forms a reference horizon. A reticle is imaged onto a linear CCD array after being reflected twice off the liquid surface, and a triangular line pattern lets the sensor capture both longitudinal and transverse tilt at once.

Because this sensor arrangement is so compact, it can sit centrally over the instrument's own vertical axis, correcting both the horizontal and vertical angle readings in real time, before you ever see the number on screen.

The value measured for the horizontal direction is corrected before being displayed, never after.

Why This Precision Matters

This isn't academic detail. On projects involving structural alignment checks or precise construction layout, a fraction of a degree of angular error compounds fast over distance. Understanding that the instrument is actively correcting itself, continuously, is part of trusting the numbers it hands you.
