Manual, Semiautomatic, Automatic: The Total Station Family Tree
From reading a scale by eye to a robot that finds its own target across a construction site. Here's how three generations of engineering got us here.
Not every total station on a job site today does the same amount of work. Some still need a person to read the horizontal circle by hand. Others can find, lock onto, and follow a prism entirely on their own. The gap between those two instruments is decades of engineering, and it happened in three distinct generations.

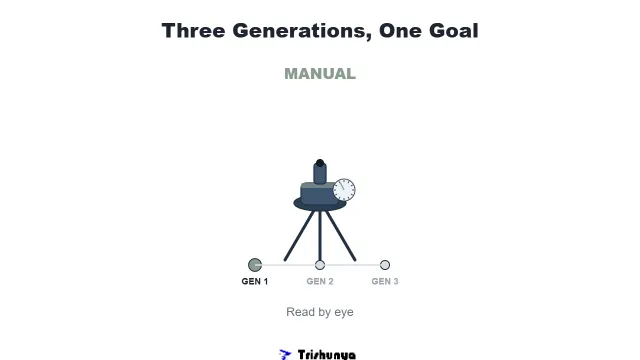

The Family Tree
Horizontal and vertical angles had to be read manually off a scale. The only electronic reading was slope distance. This generation is now obsolete.
The vertical circle went digital, but the horizontal circle still needed a manual read. Slope distances were electronic, and the instrument could reduce values to horizontal and vertical components. Also obsolete today.
Both angles sensed electronically, distances measured and reduced automatically, coordinates computed on the spot. This is the most common total station in use now, priced roughly $5,000 to $10,000 depending on features.
Then Came Servo-Driven
Once automatic total stations became standard, the next leap wasn't about the angle-reading tech itself, it was about who has to touch the instrument. Servo-driven total stations use motors to aim and position automatically. Feed it pre-determined coordinates after a back sight observation, and it sets its own horizontal and vertical angles. Manual fine-pointing still happens, but coarse aiming no longer does.
still required
with active targets, auto-tracking
vs. manual operation, per field review
Add auto-tracking to a servo-driven instrument and it locks onto a target and follows it as the rod person moves. Aiming and focusing get eliminated entirely from the manual workflow, and parallax errors disappear along with them.
The Final Leap: Robotic
A robotic total station takes the servo-driven idea and removes the second crew member. Set it up over a control point, orient it with a back sight, then walk away with just the prism and a remote positioning unit (RPU). Press the button at the target point, and the instrument tracks the prism, takes the reading, and records it, all without anyone standing at the instrument.
It even follows the prism if it's set flat on the ground while a stake is being driven. Lose the lock, press search again, and it reacquires within seconds. This is what makes true one-person surveying possible, and it's why robotic units dominate construction stakeout work today.
The instrument itself will track the prism when the surveyor presses a button at his position.
Quick Check
Where This Matters for Your Project
Choosing between generations isn't really a choice anymore, manual and semiautomatic units are essentially gone from active fleets. The real decision is automatic versus servo-driven versus robotic, and it comes down to crew size, budget, and how much repetitive stakeout work a project demands. For stakeout-heavy jobs and large linear projects, robotic instruments routinely pay for themselves in reduced field time.
FAQs
No, manual and semiautomatic total stations are considered obsolete and have largely been phased out in favor of automatic, servo-driven, and robotic units.
It automates the aiming and positioning of the instrument itself using motors, based on pre-determined coordinates, reducing manual sighting through the telescope.
No, that's the point of the robotic upgrade. One person can carry the prism and RPU and complete measurements without anyone stationed at the instrument.
Heavy vehicular traffic near the instrument can cause interference that makes it difficult for the robot to lock onto its target.
Not always. Cost, the risk of an unattended instrument being disturbed, and project scale all factor into whether the robotic upgrade is worth it for a given job.
