Point Codes: The Short Words That Draw an Entire Map

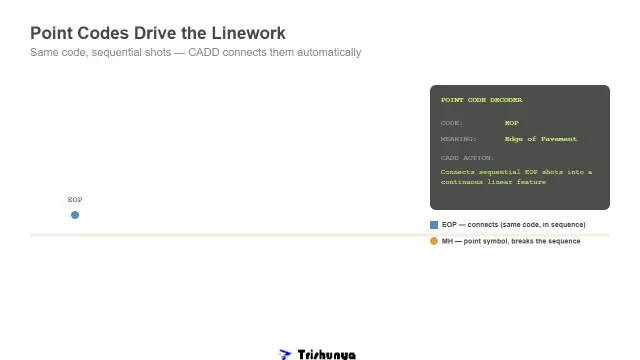

Type "EOP" into a data collector, and CADD software knows to draw a road edge. That's not magic, it's a coding system every crew learns by heart.
Every point a total station measures needs to mean something. A raw X, Y, Z coordinate tells you where something is, but not what it is. That's the job of a point code, a short identifier attached to every shot that tells the CADD software downstream exactly how to draw, label, and connect that point.
// Why Coding Exists
In topographic or planimetric surveying, points that mark curbs, gutters, center lines, and manholes all need correct identification for accurate plotting and contour interpolation. Coding is genuinely one of the most time-consuming parts of survey operations, and yet surveyors tolerate it, because it's the only reliable way to guarantee an accurate final product.
// What You Get in Return
The payoff for that time investment is significant. Field coding turns the crew into the drafter. It allows a near-finished map to come directly from field data, cutting out most manual sketch translation and office plotting. The coding scheme is built so the computer can interpret recorded data without ambiguity, essentially producing a finished product straight from the field.
// Try the Decoder
Click a code below to see how it might translate into a CADD action, the same basic principle a field coding system relies on.
// Codes Aren't Universal
either system can be used
but standardized within one organization
Point codes can be entered as either numerical or alphanumeric identifiers into the total station. Identification schemes will vary from district to district, but within a single organization, like a corps of engineers, the descriptor system should be standardized. When specialized point codes are needed, the attribute file can simply be edited to add them.
The coding scheme is designed so the computer can interpret the recorded data without ambiguity.
// The Real Cost of Getting It Wrong
A wrong or missing code doesn't just create a labeling problem, it can cause line work to connect incorrectly, contours to misinterpolate, or entire features to vanish from the final drawing. That's precisely why office review of field data, checking codes against field notes and sketches, remains such a critical step on any construction survey feeding into a client's GIS system.
Quick Check
FAQs
No. A point number is a unique identifier for that specific shot, while a point code describes what feature the point represents, like a manhole or road edge.
Yes, when specialized point codes are needed for new or unusual features, the attribute file can be edited to include them.
Correctly identifying and entering a code for every single shot takes real time in the field, but it's what makes accurate, near-automatic CADD drafting possible.
It significantly reduces the need for detailed sketches, since coded data can produce much of the map automatically, but sketches still help clarify ambiguous or complex features.
Yes, while coding conventions vary between districts or organizations, the descriptor system should stay standardized within any single organization.
