Converting vector data into raster is almost mechanical, drop a grid over a shape, mark which cells it touches, done. Converting raster back into vector is a different order of problem entirely, the software has to guess where boundaries actually run based on nothing but patterns of coloured cells. One direction is arithmetic. The other is closer to reconstruction.

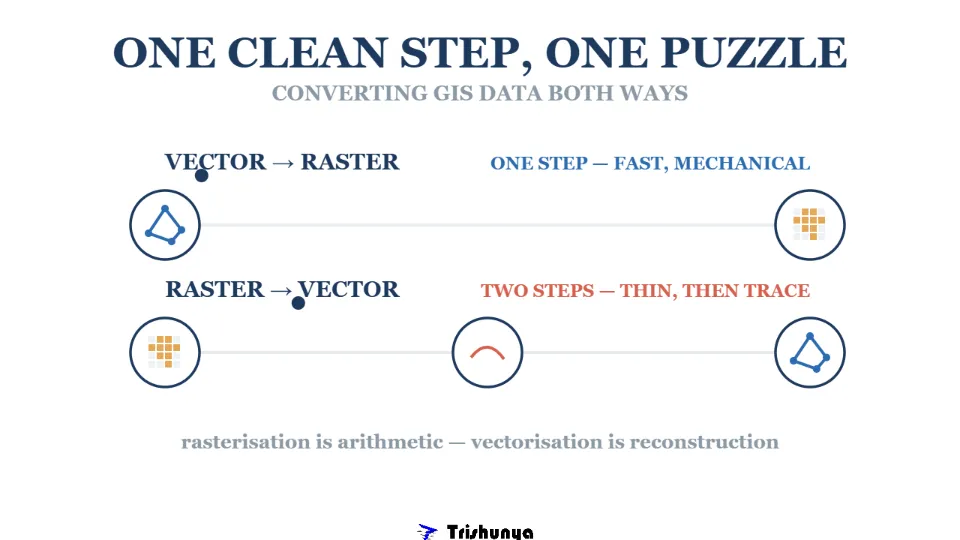

Two Directions, Two Difficulties

Try Both Conversions Yourself

Switch between the two modes below. Watch how going from vector to raster is one clean step, while going the other way needs an extra intermediate stage first.

Rasterisation is genuinely useful for practical work, colour-coded land use maps are far easier to produce in raster form than by tracing individual boundaries. It's also essential for combining GIS with remote sensing data, since satellite imagery is raster by nature, matching formats makes overlay analysis possible.

Why Vectorisation Is the Harder Problem

Going from raster to vector needs two extra steps rasterisation never requires. First, thinning: reducing a thick band of coloured pixels down to a single-pixel-wide line. Second, chain coding: tracing that thinned line into a connected sequence of coordinates. Even after both steps, the result still lacks a proper topological structure, no defined nodes, no left and right polygon relationships, which usually has to be built separately.

Rasterisation asks "which cells does this shape touch." Vectorisation asks "what shape do these cells suggest."

This asymmetry is exactly why so much modern data capture skips the problem entirely by starting in vector format from the beginning, GPS survey points, drone-derived boundaries, digitized control points, rather than trying to vectorize old raster scans later. But when raster data genuinely needs converting, like extracting road centrelines from an orthomosaic, careful vectorization remains a core part of building a usable GIS dashboard.

Next time a GIS project needs to move between formats, remember which direction you're heading. Going to raster is quick math. Coming back to vector is closer to careful detective work, and it's worth budgeting the extra time it actually needs.
