What Is a Total Station? The Instrument That Replaced Two Trips to the Field
One box, an eyepiece, and a laser beam that quietly does the trigonometry a whole survey crew used to do by hand.
Point a telescope at a target. Read an angle off a scale. Walk out, measure a distance with a tape or a chain. Write both numbers in a field book. Repeat for the next point. That was surveying for most of the 20th century, and it was slow, and it was easy to get wrong.

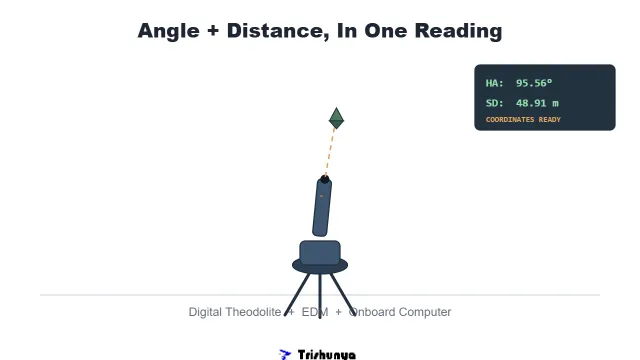

A total station collapses that whole process into one instrument. It is, at its core, a digital theodolite (for angles) fused with an electronic distance measuring unit, or EDM (for distance), plus a small onboard computer that does the trigonometry instantly. Aim it at a target, press a button, and it hands you an angle, a distance, and often the full x, y, z position of that point, all in one reading.
Two Old Jobs, One New Box
Before you can appreciate a total station, it helps to see what it replaced. A standard transit was a telescope with cross hairs, mounted on scales that told you the angle of rotation and the angle of inclination. You aimed, then read the scale by eye, interpolating between fine markings. That reading step was where human error crept in.
The electronic theodolite fixed the angle problem first. Instead of a physical scale you squint at, a coded glass circle is scanned electronically and the angle shows up as a clean digital number. No interpolation, no misreading a mark, and you can re-check the angle at any moment because the readout never disappears.
Distance was solved separately. The EDM unit inside a total station fires an infrared beam at a prism placed on the target point. The beam bounces back, and the instrument times its round trip to calculate distance. This is why total station targets are usually a small mirrored prism on a pole, not just a stick in the ground: the EDM needs something reflective to lock onto.
Try It: Old Readout vs. Total Station Readout
Tap either button below to see how the same field observation looked before and after this instrument existed.
Two people, two instruments, and a field book. Coordinates weren't known until someone did the trigonometry back at the office, often the next day.
What's Actually Inside It
Strip away the housing and a total station is really three systems working together:
for angles
for distance
for coordinates
The instrument sits on a tripod and gets leveled before any reading is taken. The prism, meanwhile, is mounted on a pole of known height and held over the point being surveyed. Here's a detail people miss: the total station is aimed at the prism, not at the ground point itself. Since the prism sits directly above the tip of the pole, the instrument simply subtracts the pole's height to work out where the ground point actually is. That subtraction happens automatically, every single time.
The determination of angles and distances are essentially separate actions, but the total station makes them feel like one.
Quick Check
Where You'll See One at Work
Total stations are everywhere on active construction and mapping sites, from construction layout and quantity checks to boundary and topographic mapping that later feeds into GIS dashboards. Its accuracy under indirect leveling makes it a standard choice for roads, airports, and harbour works, jobs where a few centimetres of error can mean redone concrete.
It won't replace every tool. Large-area terrain capture is still faster with a drone survey or DGPS network. But for point-by-point precision, stakeout, and control work, a total station remains the instrument surveyors reach for first.
FAQs
No. A total station measures angles and distances optically from a fixed instrument position, while GPS/DGPS uses satellite signals to fix a position directly. They're often used together on the same project.
Yes. Since it works by aiming an infrared beam at a prism, obstructions like trees, walls, or terrain between the instrument and the target will block the reading.
Yes, since it relies on an infrared beam rather than visible light for distance measurement, many total station functions work in low light or darkness.
Direct sun observation without special filters can damage the EDM component. This is a genuine field hazard, not a minor inconvenience.
The underlying instrument was originally called an electronic tacheometer. Hewlett-Packard introduced the "total station" name decades ago, and it stuck across the profession.
