What is Corridor Mapping and Why Transmission Lines Need It

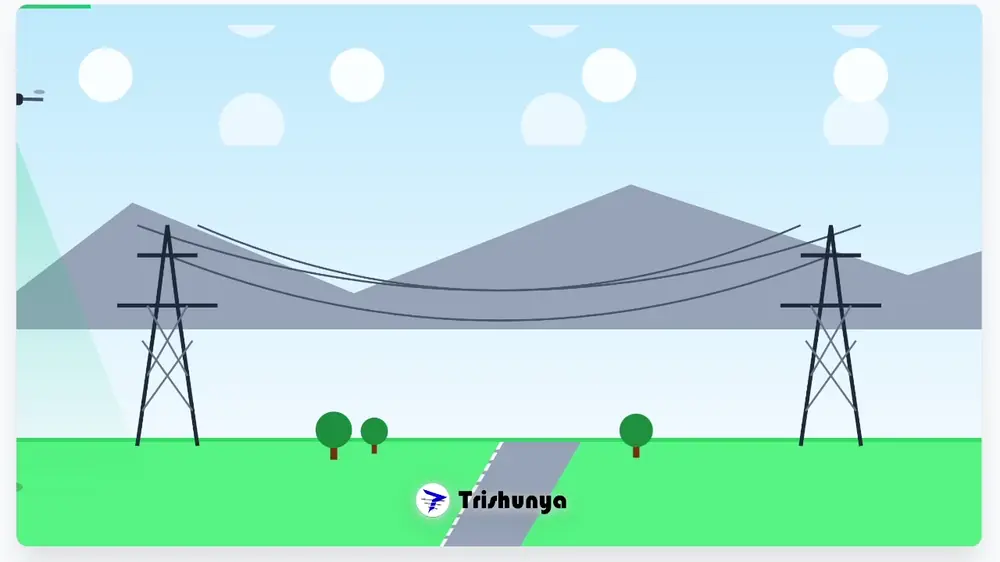

A transmission line is not a single point. It is a continuous path stretching tens or hundreds of kilometres, crossing farmland, forests, rivers, and villages. Corridor mapping surveys that entire path as one continuous dataset, giving designers the complete picture needed to route towers, calculate conductor sag, and estimate land acquisition, all before construction begins.
Watch closely. A drone shadow occasionally crosses this section, just like it would cross the real corridor below.
What Corridor Mapping Captures
Terrain and Elevation

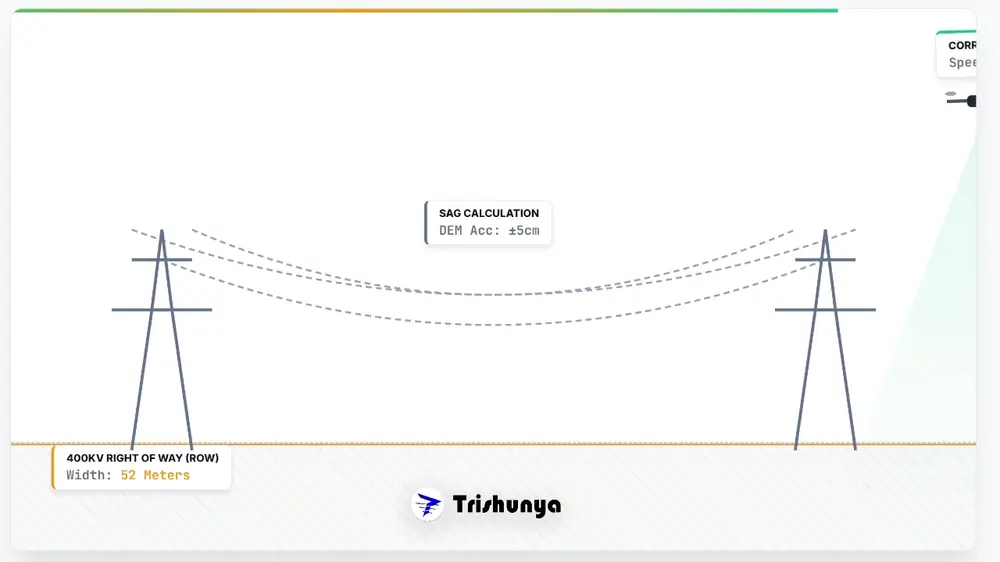

DEM and DTM data along the full corridor width, essential for tower spotting and sag calculations at every span.
Vegetation and Tree Data
Tree enumeration within the Right of Way, geotagged with species and count for forest clearance applications.
Existing Crossings
Roads, rivers, railway lines, and other utility crossings mapped precisely for clearance and design coordination.
Land Parcel Data
Village-map-based documentation of affected land parcels for the acquisition and compensation process.
20 km/day
Typical corridor survey speed
52m
Standard 400kV ROW width
5cm
Terrain accuracy for sag calc
Why Corridor Mapping Prevents Expensive Mistakes
Route changes after design are exponentially more expensive than route changes before design. Corridor mapping identifies obstacles, crossings, and land constraints upfront, when adjusting the route costs almost nothing compared to redesigning after towers are already specified.
The Corridor Mapping Process
| Stage | What happens |
|---|---|
| Reconnaissance | Initial corridor walk and access planning |
| Aerial Data Capture | Drone or LiDAR flight along entire route with GCPs |
| Feature Extraction | Crossings, structures, and vegetation identified and tagged |
| Deliverable Preparation | Topography, DTM, tree data, and land documentation compiled |
For forested corridors specifically, LiDAR becomes necessary rather than optional, since only laser pulses can penetrate canopy to capture true ground elevation for sag calculations. Learn more about our power transmission line survey services across India.
