What is Structure from Motion (SfM) and How It Powers Modern Photogrammetry
Every time a drone survey produces a 3D model from a set of overlapping photos, Structure from Motion is the algorithm quietly doing the heavy mathematical work. It is the computer vision technique that reconstructs both camera positions and 3D scene geometry simultaneously, purely from analyzing how features shift between images.
1,000+
Feature points tracked per image typically
Zero
Camera positions needed as input
3+
Minimum overlapping images per point
1990s
Decade SfM techniques were first developed
How SfM Solves an Elegant Problem
Two unknowns solved together
SfM does not know camera positions in advance, and it does not know the 3D scene geometry in advance either. It solves both simultaneously by tracking how the same physical features appear to shift across multiple images taken from different positions, exactly how human depth perception works with two eyes.
The SfM Pipeline Step by Step
1
Feature Detection
2
Feature Matching
3
Camera Pose Estimation
4
Sparse Point Cloud
5
Dense Reconstruction

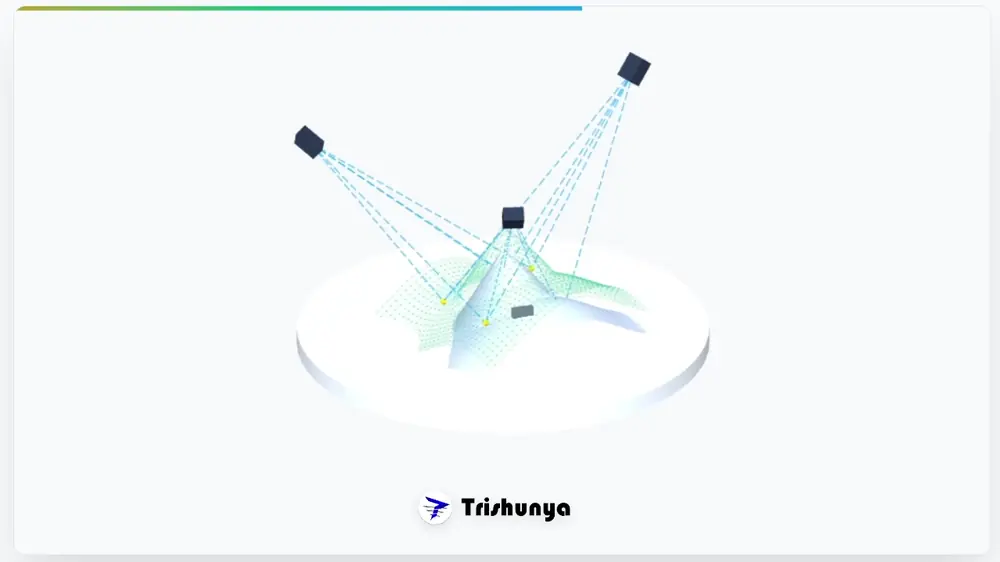

Every overlapping photo pair contributes matched feature points that SfM uses to reconstruct both camera position and 3D geometry.
Why This Matters for Survey Quality
More Overlap, Better Results
SfM depends entirely on matched features across images. Higher overlap gives the algorithm more correspondence data to work with, improving final accuracy.
Distinctive Surfaces Help
Areas with strong visual texture, gravel, vegetation edges, cracked pavement, provide easier feature matching than smooth, featureless surfaces like fresh concrete or calm water.
Where SfM Struggles
| Challenging Surface | Why SfM Struggles |
|---|---|
| Calm water bodies | Featureless, reflective surface with few trackable points |
| Fresh snow or sand | Uniform texture provides insufficient distinctive features |
| Repetitive patterns | Similar-looking features can cause false matches between images |
Understanding SfM's requirements is exactly why proper flight planning with adequate overlap matters so much, and why certain surfaces need special handling during survey planning. Learn more about our drone survey services.
