Every road that meets another road, every parcel that touches its neighbour, runs on a hidden network only GIS can see.

31 May 2021•4 min read• TITrishunya India

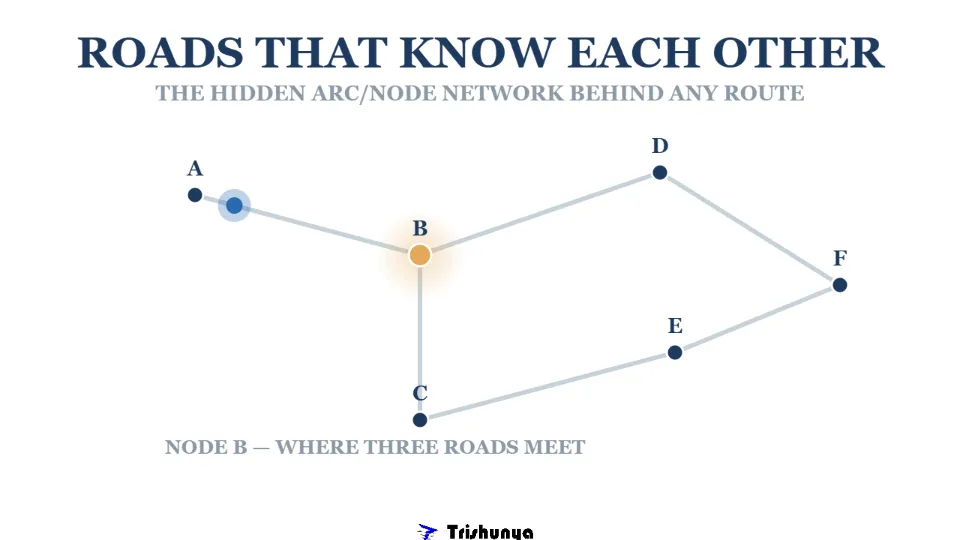

Network diagram style illustration explaining the arc node topology model in GIS

Zoom into any road network on a GIS map and ask it to find the shortest route between two points, and it answers almost instantly. That speed isn't magic, and it isn't raw computing power either. It's because the GIS never actually looks at coordinates to answer that question. It looks at a hidden network of arcs and nodes instead.

The core idea

Topology encodes relationships, what connects to what, what touches what, what's inside what, separately from raw coordinates. Once that network exists, most spatial questions become fast to answer.

Meet the Arc and the Node

Tap the nodes and connecting arcs below to see how this network actually represents a small piece of road, entirely without needing to recalculate coordinates each time.

🔗 Arc/Node Network

Tap a node or arc to see what it represents

Tap a node (circle) or arc (line) above to see what it represents.

Notice node B, that's where three arcs meet, a genuine intersection. The GIS doesn't need to check coordinates to know these roads connect there, the shared node already encodes that fact directly. This is exactly why routing and network analysis run fast on topologically structured data, and painfully slow or not at all on raw, unstructured coordinate lists.

Three Relationships, One Model

🔗Connectivity: roads meeting
🧱Adjacency: parcels touching
🏝️Containment: island in lake
📐Contiguity: features near

The real payoff is that topological analysis can run using the network structure alone, without touching raw coordinate data at all. That's a genuine advantage over the older CAD-style "spaghetti" vector model, where every relationship has to be recalculated from scratch by comparing coordinates directly, a slower and less reliable approach.

The Cost of That Advantage

Topology isn't free. It has to be built, and rebuilt, every time the underlying data changes. Edit a single forest stand boundary to reflect a recent harvest, and the topology around it needs regenerating before analysis can resume. On a dataset with thousands of complex, sinuous features, that rebuild can take real time, one of topology's few genuine drawbacks.

Coordinates tell you where. Topology tells you how things relate.

Why Digital Maps Left Paper Behind

This entire relational structure is only possible because the underlying map is digital, not a static drawing. Compare the two side by side.

Analog MapDigital Map
Static, fixed at print timeDynamic, editable anytime
No underlying queryable dataData available to examine and question
Limited analysis capabilityFull spatial and topological analysis
Slow, manual updatesFast, systematic updates

A well-built GIS dashboard for urban planning leans entirely on this digital advantage, every layer a user toggles is running live topological and attribute queries behind the scenes, something no paper map, however beautifully drawn, could ever offer.

Quick Check

Test Your Understanding

In the arc/node model, what does a shared node between two arcs represent?

A printing error in the map
A connection point, like a road intersection
The centre of a polygon

Quick Answers

What is a dangling arc in GIS topology?
An arc that doesn't connect to another arc at one end, commonly representing a dead-end street or an unfinished digitizing edit that needs correction.
Why does topology need to be rebuilt after editing?
Because topology is static by nature, once a feature's boundary or connection changes, the relational structure defining nodes, arcs, and polygons must be regenerated to stay accurate.
What's the main advantage of topological data over CAD-style vector data?
Topological data allows spatial relationship analysis, like adjacency and connectivity, using the network structure alone, without needing to derive relationships from raw coordinates each time.
Are analog maps still useful if GIS is so much more powerful?
Yes, for quick visual reference or field use without power, but they lack any queryable data structure, so all real analysis still requires a digital, topologically structured dataset.
What is referential integrity in GIS?
The concept of keeping both the topological spatial structure and the linked attribute data consistent with each other, so neither becomes outdated relative to the other.

Need a properly structured, topology-ready GIS dataset?

Trishunya's GIS solutions team builds clean, connected data your analysis can actually rely on.

Next time a GIS calculates a route or flags two touching parcels in an instant, remember there's no coordinate math happening behind that speed, just a quiet network of nodes and arcs, already knowing exactly what connects to what.
