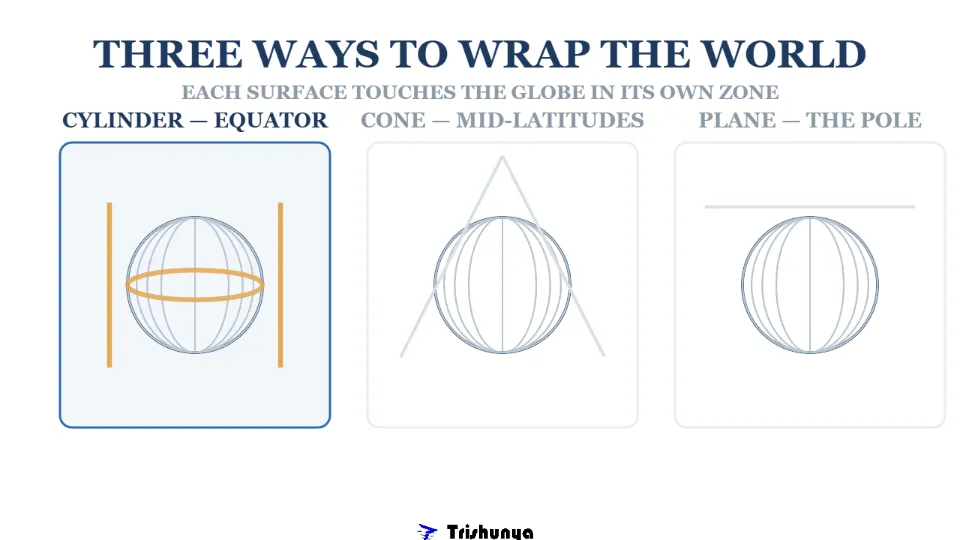

Imagine a transparent globe with a light inside, casting the shadow of every continent and coastline outward. Now wrap a piece of paper around that globe three different ways, as a cylinder, as a cone, or as a flat sheet touching just one point, and trace what the light projects onto each. You've just built the three fundamental families of every map projection ever made.

Wrap the Globe Yourself

Tap through the three surfaces below to see how each one touches the globe differently, and what kind of map results once it's unrolled flat.

Which Surface, Which Region

Each surface has a natural sweet spot, the line or point where it actually touches the globe, called the standard line, is where distortion drops to zero. Move away from that line, and distortion creeps back in, growing worse the further you go. This is exactly why cylindrical projections suit equatorial maps, conical projections suit mid-latitude countries with an east-west spread, and azimuthal projections suit the poles, where the other two struggle most.

Tangent vs Secant: One Touch or Two

A surface can touch the globe at a single tangent line, or cut through it at two secant lines instead. Secant cases generally distribute distortion more evenly, since there are now two zero-distortion lines instead of one, and the worst distortion gets pushed further toward the map's edges. This is a genuinely clever trick, more contact means less overall error across the useful area of the map.

Every projection is really just asking: where do I want zero distortion, and how far can I let it grow from there?

This geometric choice ripples directly into practical topography work. A country with a strong east-west extent, spanning many degrees of longitude but relatively few of latitude, is a textbook case for a conical projection, which is exactly why national mapping agencies covering such regions often standardize on conic-based systems for their official topographic series.

Understanding which surface underlies a given map also helps explain sudden distortion jumps in GIS solutions work, a project spanning both equatorial and polar zones will likely need more than one projection family to stay accurate across its full extent.

Next time you see a country stretched oddly at its edges on a map, trace it back to the shape that created it, a cylinder, a cone, or a flat plane, quietly deciding where the truth stayed intact and where it started to bend.
