Digitizing a Map: How Paper Becomes Points, Lines, Polygons

🧮 7  |  🟢 2
26 May 2021 Trishunya Team
Digitizing a Map: How Paper Becomes Points, Lines, Polygons
EDUCATIONAL

Digitizing a Map: How Paper Becomes Points, Lines, Polygons

> ENTITY "lake" NOT RECOGNIZED. TRY: polygon(x,y coordinates)

26 MAY 2021•4 MIN READ• TITrishunya India
Retro computer terminal style illustration explaining map digitizing into points lines and polygons

Type the word "lake" into a GIS database and it means absolutely nothing to the software. A GIS has no concept of a lake, a road, or a building as a whole idea. It only understands three primitive shapes: a point, a line, and a polygon. Digitizing is the entire process of translating a human-readable paper map into that stripped-down vocabulary a computer can actually work with.

The core rule

Every real-world feature, however complex, gets reduced to a point, a line, or a closed polygon before a GIS can store it. Nothing more complicated is allowed.

Trace a Lake Yourself

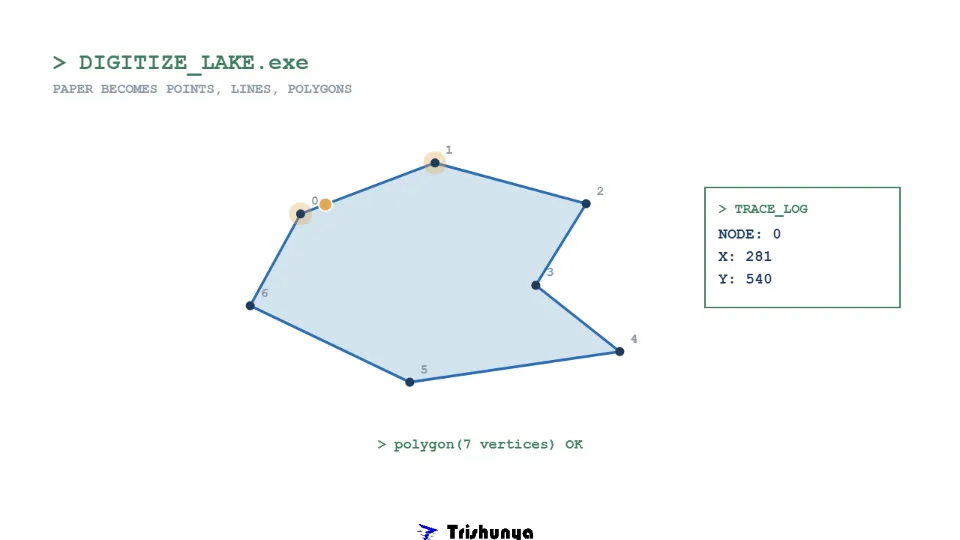

Tap each node below in order to see how a shoreline, something you'd casually call "the lake," actually becomes a closed polygon made of nothing but connected coordinate points.

> DIGITIZE_LAKE.exe

TAP NODES IN ORDER TO TRACE THE POLYGON

> Tap nodes 0 through 6, in order, to trace the shoreline.

Notice that the GIS never stored the concept "lake" anywhere in that process. It stored seven x, y coordinate pairs, in order, forming a closed shape. Only afterward, in a completely separate step, do attributes like name, depth, or water quality get attached to that polygon.

Three Shapes, Every Feature

📍Point: a well
〰️Line: a stream
🔷Polygon: a lake

How the Actual Tracing Happens

Tap each step below to walk through how a paper map physically becomes digital coordinates on a digitizing tablet, a grid of fine wires that senses exactly where a hand-held cursor is positioned.

1Affix the map➤
The paper map is taped securely to the digitizing table's surface so it can't shift during tracing.
2Digitize control points➤
Four corner tick marks are digitized first, along with their known real-world coordinates, to anchor the whole map.
3Trace map contents➤
Features are traced layer by layer, in point, line, or stream mode, generating a string of coordinates for each shape.
4Edit and clean errors➤
Small gaps, overshoots, and duplicate lines introduced during tracing get corrected for a clean dataset.
5Convert to map coordinates➤
Raw digitizer coordinates are transformed into real-world map coordinates using the control points from step 2.

Where It Goes Wrong

Paper itself is the weak link. Maps physically stretch and shrink slightly with humidity and temperature, so a point digitized today can sit fractionally off from where it was digitized last week on the same sheet. Combine that with human tracing error, and it's clear why land acquisition work has moved heavily toward direct GPS and Total Station capture instead of digitizing old paper records wherever possible.

A GIS never sees a lake. It only ever sees a closed loop of coordinates.

Quick Check

> TEST_UNDERSTANDING.run()

Which three shapes can a GIS actually store?

Circles, squares, and triangles
Points, lines, and polygons
Pixels, vectors, and images only

This same simplification discipline underlies every GIS solutions project, whether the source is an old paper map or a fresh drone survey. If it can't be reduced to a point, line, or polygon, it doesn't exist in the database yet.

Quick Answers

Why can't a GIS just store the word "lake" directly?
Because GIS databases only recognize geometric primitives, points, lines, and polygons. Real-world labels like "lake" are stored separately as attribute data linked to that shape.
What are the four digitizing modes?
Point, line, string, and stream mode, each differing in how many coordinate points get captured and whether the user manually controls point placement.
Why do old paper maps cause digitizing errors?
Paper physically expands and contracts with humidity and temperature, so points digitized at different times can be slightly misaligned even from the same map sheet.
What is heads-up digitizing?
Tracing map features directly on screen over a scanned raster image, rather than on a physical digitizing tablet, now the more common approach.
Are control points really necessary for digitizing?
Yes, without known reference points at the map's corners, digitized coordinates have no way to align with a real-world coordinate system.

Need old records converted into clean, usable GIS data?

Trishunya's GIS solutions team handles digitizing and boundary cleanup with proper control point accuracy.

Next time a GIS map looks perfectly clean, remember it started life as nothing but a sequence of coordinate pairs, patiently traced, corrected, and transformed until a computer finally agreed it was a shape worth keeping.

Back to all articles
