What is a Flight Mission Plan and How Waypoints Are Calculated
A drone does not simply fly wherever the pilot points it during a survey. It follows a precisely calculated mission plan, a grid of waypoints determining exactly where to fly, at what altitude, at what speed, and how each photo overlaps the next. Getting this plan right before takeoff is what determines whether the data collected is even usable.
What a Mission Plan Actually Calculates
Flight Altitude
Determines Ground Sample Distance, directly controlling image resolution and detail captured.
Image Overlap
Typically 70-80% forward and side overlap, essential for successful photogrammetric processing.
Flight Speed
Balanced against camera shutter speed and lighting conditions to avoid motion blur in captured images.

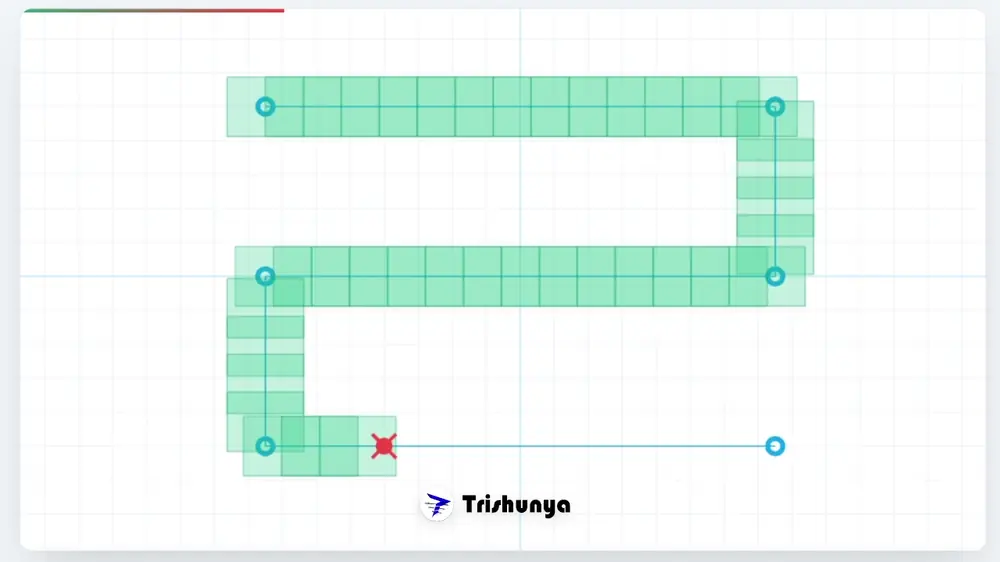

Waypoint Grid Pattern
Systematic flight lines covering the entire survey area without gaps, following the shortest efficient path.

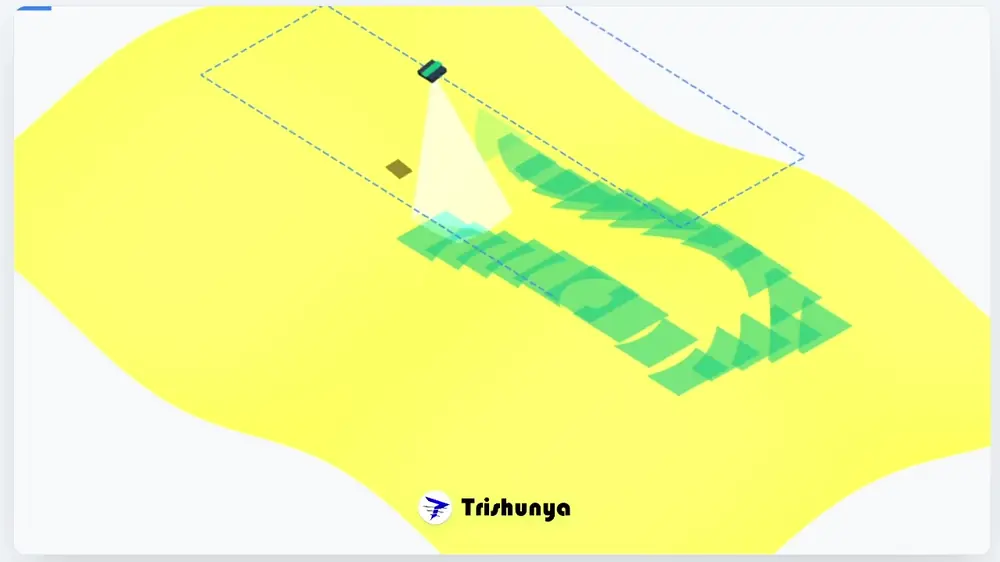

Once the mission plan is loaded, the drone autonomously follows the calculated waypoint grid, capturing images at the precise intervals planned.
80%
Typical forward overlap
70%
Typical side overlap
Zero
Coverage gaps in a well-planned mission
Why Mission Planning Cannot Be Rushed
A poorly planned mission cannot be fixed in office processing. Insufficient overlap or wrong altitude means gaps in the final model or reduced accuracy, neither of which can be corrected after the flight without going back to site and reflying.
Factors That Adjust Every Mission Plan
| Factor | Adjustment Made |
|---|---|
| Terrain elevation changes | Altitude adjusted to maintain consistent GSD across varying terrain |
| Wind conditions | Speed and flight direction adjusted for stability |
| Required accuracy | Overlap percentage increased for higher accuracy needs |
Every survey we execute begins with a carefully calculated mission plan matched to your project's specific accuracy and deliverable requirements. Learn more about our drone survey services.
