What is Point Cloud Registration and How Multiple Scans Align Into One Model
No single scanner position can capture every surface of a complex structure. Occlusions, shadows, and limited field of view mean multiple scans from different positions are always needed. Point cloud registration is the process that stitches these separate scans into one seamless, correctly aligned 3D model.
5-50+
Typical scan positions per complex site
1-3mm
Registration accuracy achievable
30%
Minimum scan overlap recommended
Zero
Data gaps in a well-registered final model
Two Approaches to Registration
Physical targets, spheres or checkerboards, are placed in the scene and visible from multiple scan positions. Their precisely known positions provide clear reference points that software uses to align consecutive scans mathematically.
LiDAR scans into unified 3D model" class="kenburns-img"/>
The Registration Workflow
1
Individual Scans
2
Correspondence Finding
3
Transformation Calculation
4
Fine Alignment

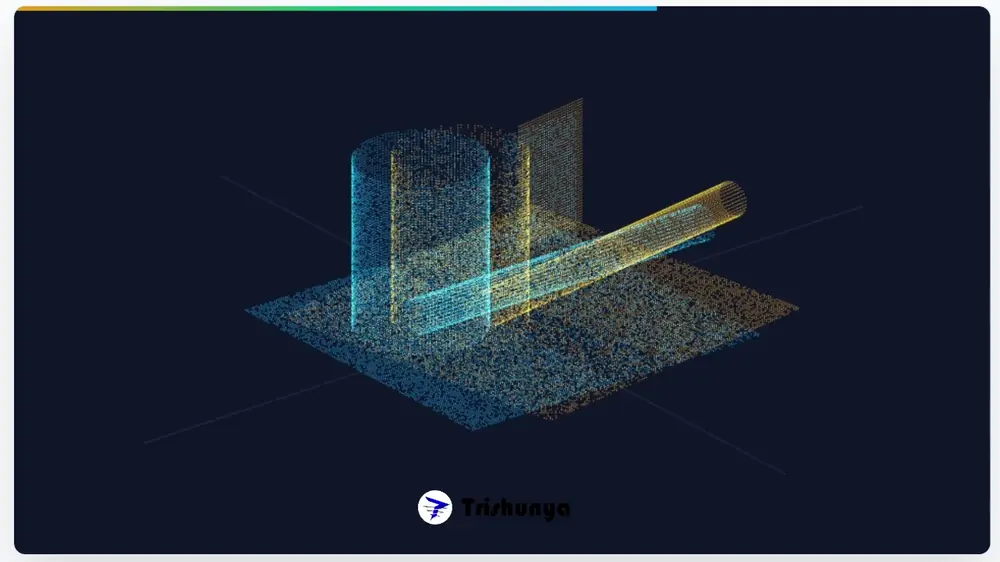

Multiple scanner positions around a facility ensure every surface is captured from at least one clear viewpoint before registration begins.
Why Registration Quality Matters So Much
Poor registration creates a doubled, blurry model
If scans are misaligned even slightly, overlapping surfaces appear duplicated or blurred in the final point cloud, immediately obvious to anyone viewing the model and unusable for precise dimensional work like BIM or clash detection.
Common Registration Applications
| Application | Why registration is critical |
|---|---|
| Industrial plant scanning | Complex piping and equipment need seamless coverage from all angles |
| Bridge and structural inspection | Underside and side surfaces require multiple scan positions |
| Heritage building documentation | Interior and exterior scans must align perfectly for accurate 3D records |
Our scanning teams plan scan positions and overlap carefully from the start, ensuring registration produces a clean, accurate final model every time. Learn more about our scanning and inspection services.
