What is a Waveform LiDAR and How It Differs from Discrete Return LiDAR
Standard LiDAR systems record a handful of distinct return points per laser pulse, first return, last return, maybe a few in between. Waveform LiDAR takes a fundamentally different approach: it captures the entire shape of the returned energy over time, preserving far more detail about everything the laser pulse encountered on its way down.
1,000+
Waveform samples per pulse recorded
3-5
Discrete returns typically recorded per pulse
10x
More data retained per pulse, waveform vs discrete
Reduced
Data loss compared to discrete return systems
How the Two Systems Differ Technically
1
Pulse Interaction
2
Discrete Detection
3
Waveform Digitization
4
Waveform Analysis
What Waveform Data Reveals Beyond Standard LiDAR
Vegetation Vertical Structure
Canopy density profile from top to bottom, useful for forestry biomass estimation and habitat studies.
Surface Reflectance Character
Subtle differences between surface types that discrete point classification alone might miss entirely.
Sub-Canopy Ground Detail
Weak ground returns hidden within dense vegetation are more reliably extracted from full waveform analysis.
Object Edge Detection
Building edges and structural boundaries show characteristic waveform shapes useful for automated feature extraction.

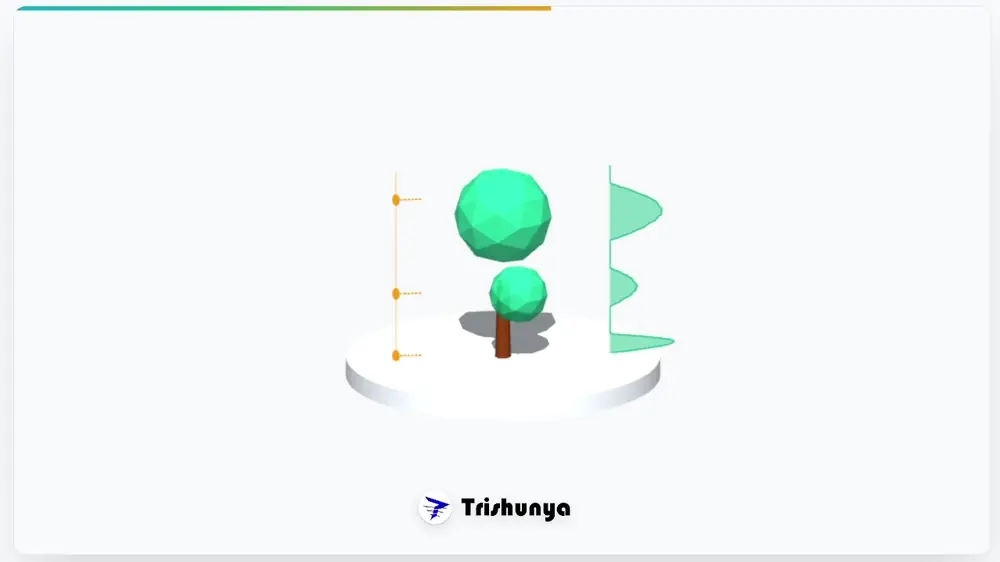

Waveform LiDAR reveals the vertical structure of forest canopy in far more detail than discrete return systems typically capture.
Practical Trade-Offs to Consider
| Factor | Discrete Return | Waveform LiDAR |
|---|---|---|
| Data volume | Manageable, standard file sizes | Significantly larger datasets |
| Processing complexity | Standard, well-established workflows | Specialized software and expertise needed |
| Cost | Standard LiDAR survey pricing | Premium, specialized service |
| Best for | Most terrain and infrastructure projects | Forestry, ecology, advanced research |
Most infrastructure projects don't need waveform LiDAR
Standard discrete return LiDAR provides more than sufficient detail for transmission line corridors, road design, and typical topographic mapping. Waveform LiDAR earns its extra cost and complexity specifically for forestry biomass studies and detailed ecological research.
We help clients choose the right LiDAR approach for their actual project need, avoiding unnecessary cost for capability that will not be used. Learn more about our LiDAR scanning services.
